Comprehensive Geocoding Infrastructure and Strategy (v2.2)

Key Update: This version has been enhanced with a new section providing implementation examples for R users via the arcgisgeocode package, making the programmatic workflow more accessible.

Executive Summary

To address the diverse and growing geospatial research needs at the University, a robust, flexible, and cost-effective geocoding strategy is essential. This document outlines a hybrid geocoding architecture that leverages the strengths of a self-hosted open-source solution, direct commercial API access, and a user-friendly web application. By combining a containerized OpenStreetMap (OSM) Nominatim instance, the Google Maps and Esri ArcGIS World Geocoder APIs, and the RCC-GIS Geocoding Service, this strategy provides multiple pathways to handle varying requirements for accuracy, volume, cost, and data privacy.

This document outlines two primary workflows:

A programmatic hybrid approach for automated, large-scale, or customized tasks, with examples in Python and R.
A web-based service for easy-to-use batch geocoding via a graphical interface.

1. Geocoding Service Comparison (2025)

The following table provides an updated comparison of the available geocoding services, including performance metrics and rate limits.

Service	Type	Accuracy & Coverage	Rate Limit	Cost Structure (Subject to Change)
RCC-GIS Geocoding Service	Web Application (Esri Backend)	Match Rate: 82.3% Rooftop Accuracy: 80.1%	~250-500k records/hr	Free: Credit-based. 2000 free credits per user (equals 50,000 records). More by request.
OpenStreetMap Nominatim	Open Source (Self-Hosted)	Match Rate: Varies by region Coverage: Global (quality is region-dependent)	Configurable	Free Software: Infrastructure and maintenance costs only.
Google Maps API	Commercial Cloud (Direct API)	Match Rate: 85.7% Rooftop Accuracy: 83.8% Coverage: Global	~50 QPS	Free Tier: 10,000 requests/month Standard: ~$5/1,000 requests
Esri ArcGIS World Geocoder	Commercial Cloud (Direct API)	Match Rate: 82.3% Rooftop Accuracy: 80.1% Coverage: Global + Premium (Note: R users can easily access this service via the `arcgisgeocode` package)	~5 QPS	Free Tier: 20,000 requests/month Standard: ~$5/1,000 requests (40 credits)
RCC Geocoder Toolkit	Local Scripts	N/A	Local	Internal resource; no direct cost.

2. Proposed Programmatic Hybrid Strategy

This programmatic hybrid workflow is designed for automated, large-scale, and customized geocoding tasks. For simpler, UI-based batch processing using the Esri engine, users can also leverage the RCC-GIS Geocoding Service web application (see Section 7 for a detailed guide).

Hybrid Workflow Architecture

Preparation Layer (Mandatory): All addresses must first be processed using the RCC Geocoder Toolkit (local cleaning scripts).
Primary Layer (Free & Private): Self-Hosted OSM Nominatim
- Use for: All initial batch processing and for any data classified as sensitive (PII, PHI).
Secondary Layer (Paid & High-Accuracy): Commercial APIs
- Use for: Addresses that failed on the primary OSM layer or require the highest possible accuracy. Fall back to Google Maps API or Esri World Geocoder API.

Implementation Examples

The following examples show how to implement parts of this workflow in common data science languages.

Python Implementation (Pseudo-code)

This function demonstrates the fallback logic of the hybrid approach.

import time

def hybrid_geocode(address, threshold=0.8):
    """Attempts to geocode an address using a hybrid waterfall approach."""
    try:
        # Tier 1: Try self-hosted OSM Nominatim first
        osm_result = osm_geocode(address)
        if osm_result and osm_result.confidence > threshold:
            return osm_result

        # Tier 2: Fall back to Google Maps API
        google_result = google_geocode(address)
        return google_result

    except RateLimitError as e:
        # Implement backoff strategy
        time.sleep(30)
        return hybrid_geocode(address)
    except Exception as e:
        return None

R Implementation Example using `arcgisgeocode`

For R users, the arcgisgeocode package provides a convenient interface to the Esri World Geocoder, which can be used as part of the secondary, high-accuracy layer of the hybrid workflow.

# Install the necessary packages
# install.packages("arcgisgeocode")
# install.packages("arcgisutils") # For API key management

library(arcgisgeocode)
library(arcgisutils)
library(dplyr)

# Set your ArcGIS API key. This only needs to be done once per session.
# It is recommended to store keys as environment variables, not directly in scripts.
set_arc_api_key(Sys.getenv("ARCGIS_API_KEY"))

# --- Batch Geocoding a data frame ---

# Create a sample data frame of addresses
addresses_to_geocode <- data.frame(
  id = c(1, 2, 3),
  address = c(
    "5801 S Ellis Ave, Chicago, IL 60637",
    "1600 Pennsylvania Ave NW, Washington, DC 20500",
    "1 E 161st St, The Bronx, NY 10451"
  )
)

# Geocode the 'address' column
# The for_storage = TRUE parameter is required for batch geocoding and may consume credits
geocoded_results <- geocode_addresses(
  single_line = addresses_to_geocode$address,
  for_storage = TRUE
)

# The result is a spatial data frame (sf object)
glimpse(geocoded_results)

3. Implementation Guide: Containerized OSM Nominatim

Resource Requirements

Component	Minimum Requirement	Recommended for Production
RAM	12GB (for a single country/region)	128GB (for North America or global dataset)
Storage	500GB SSD	1TB+ NVMe
CPU	4 cores	8+ cores

HPC Deployment on Midway (Apptainer)

Optimized Container Build:

apptainer build nominatim.sif nominatim.def

PostgreSQL Performance Tuning:

shared_buffers = 2GB
maintenance_work_mem = 10GB
work_mem = 50MB
synchronous_commit = off
checkpoint_timeout = 60min

HPC Best Practices:
- Utilize Local Scratch: Set export APPTAINER_TMPDIR=/tmp before running I/O-intensive jobs.
- Use Fast Storage: Host the Nominatim database on the fastest possible storage tier.

4. Operational Best Practices for Programmatic Geocoding

Rate Limiting Management

Token Bucket Algorithm: Implement a token bucket system in client applications to manage request bursts and stay within API limits.
Manual Delays & Backoff: For simpler scripts, add a manual delay (time.sleep() in Python, Sys.sleep() in R). Your code must handle 429 (Too Many Requests) errors by implementing an exponential backoff-and-retry strategy.

Data Preparation

Clean and Standardize: Use the RCC Geocoder Toolkit to parse, clean, and standardize addresses.
Log Extensively: Log which service geocoded each address, the confidence score, and the match type (ROOFTOP, INTERPOLATED, etc.).

5. Cost Optimization by Volume (Programmatic Approach)

Low Volume (< 10k addresses/month): Primarily use the Google Maps API free tier.
Medium Volume (10k - 50k addresses/month): Implement the full hybrid approach: process all data through OSM first, then use paid APIs for failures.
High Volume (> 50k addresses/month): Rely almost exclusively on the self-hosted OSM solution.

6. Advanced Infrastructure: Service Redundancy

Environment Separation: Maintain separate development/staging and production environments for the Nominatim service to test changes before deployment.
Version Control: Mirror all documentation and client-side code in a version-controlled repository (e.g., Git) for disaster recovery and collaboration.

7. User Guide: RCC-GIS Geocoding Service Web Application

This section provides a detailed guide for using the user-friendly, browser-based geocoding application.

Introduction

The University of Chicago RCC-GIS Geocoding Service allows UChicago affiliates to take lists of street addresses or place names and convert them into latitude and longitude coordinates. The engine behind this service is the Esri World Geocoder for ArcGIS.

All users are allocated 2000 credits by default. 2000 credits will allow a user to geocode 50,000 records. If a user needs more, a request must be forwarded by email to gis-help@rcc.uchicago.edu.

1. Formatting Data for Processing

Records must be formatted in a CSV (comma-separated value) file with UTF-8 encoding. The following headers are acceptable: ID, ADDRESS, NEIGHBORHOOD, CITY, SUBREGION, REGION or STATE or ST, POSTAL or ZIP or ZIPCODE, COUNTRYCODE.

Activate the service by navigating to http://geocoder.rcc.uchicago.edu.

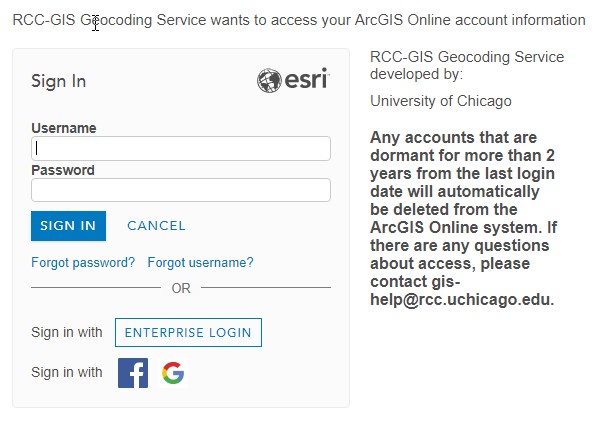

Log on by clicking on “Sign in with Enterprise Login”.

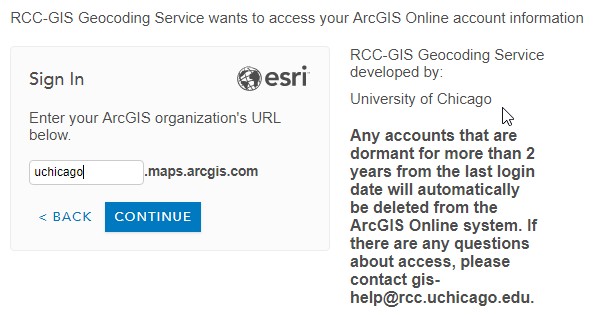

Enter the portal’s URL “uchicago.maps.arcgis.com” and click Continue.
Sign in by clicking on UCHICAGO and entering your CNetID username and password.
Upload your CSV file by clicking Select File.
Click the Submit button to begin geocoding.
When completed, click the link to Download the Geocoded File.

3. Interpreting Geocoding Output

The downloaded output file will include your original data along with three new columns: LATITUDE, LONGITUDE, and MATCH SCORE.

Warning: A low match score will still produce a coordinate pair, but it may be incorrectly placed. For example, an address that cannot be found may default to the center of the city. Any records with a low match score should be re-evaluated, validated with another geocoding service, or dropped from the dataset.

For detailed information about the specialized RCC-GIS Geocoding Service web application, please see our RCC Geocoding Service documentation.
